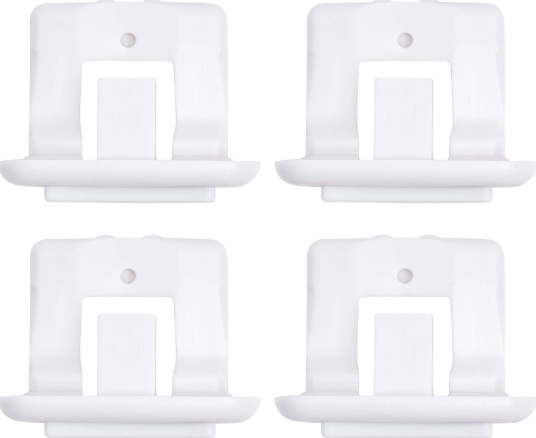

WD12X10304 Dishwasher Upper Rack Slide End Cap
Model:WD12X10304
  • ENHANCED STABILITY: WD12X10304 Dishwasher Slide End Cap will securely keep the upper dishrack from wobbling or sliding completely off the track during operation or pulling out, improving stability and reducing the risk of accidents or damage to your dishes. If your stop clip is broken/ cracked, it’s time to replace it to fix those symptoms: Top rack keeps slipping off the rail | Top rack did not have stops on the rail ends | Door latch failure.

  • PERFECT MATCH: WD12X10304 Slide End Cap replaces part numbers: #1556527, AP4484666, WD12X0344, WD12X344, WD30X97, WD30X0097, PS2370502, WD12X10238. It is made exactly fit for several models of most top-name brands (General Electric, Kenmore, Hotpoint).

  • FIT MODELS: [Kenmore] - 18385, 361402891, 3631401190, 3631444597, 3631444896, 36315465790, 36316121100, 36316129100, etc. [GE] - 1200L02, 3000B10, 3000W10, 40581159, 40610118, 41540138, 41540158, 41541128, CRD2204X00WW, GHD6310L15BB, GHD6310L15WW, GHD6310L18SS, etc.

  • SUPERIOR QUALITY: 8565925 Stop Clip is made of sturdy ABS plastic with excellent wear resistance and non-cracking design and contains no BPA material. This ensures Long-lasting performance for daily dishwasher frequent use - Material safety under high temperatures of dishwasher operation (extreme heat endurance up to 250°F). This is also the updated end cap version which has the redesigned locking tab for better holding on the rack.

  • EFFORTLESS INSTALLATION: Please disconnect both the power & water supply and wear work gloves before starting any repair. (If you have the old version cap) pinch and twist to pull it out. (If you have the redesigned version cap like ours) use a small screwdriver to press on the locking tab to release it. Align the new end cap and snap it into place. Pull the rack in and out a few times to make sure the stop clip will not disengage. Please do not pry or bend the part with excessive force.
