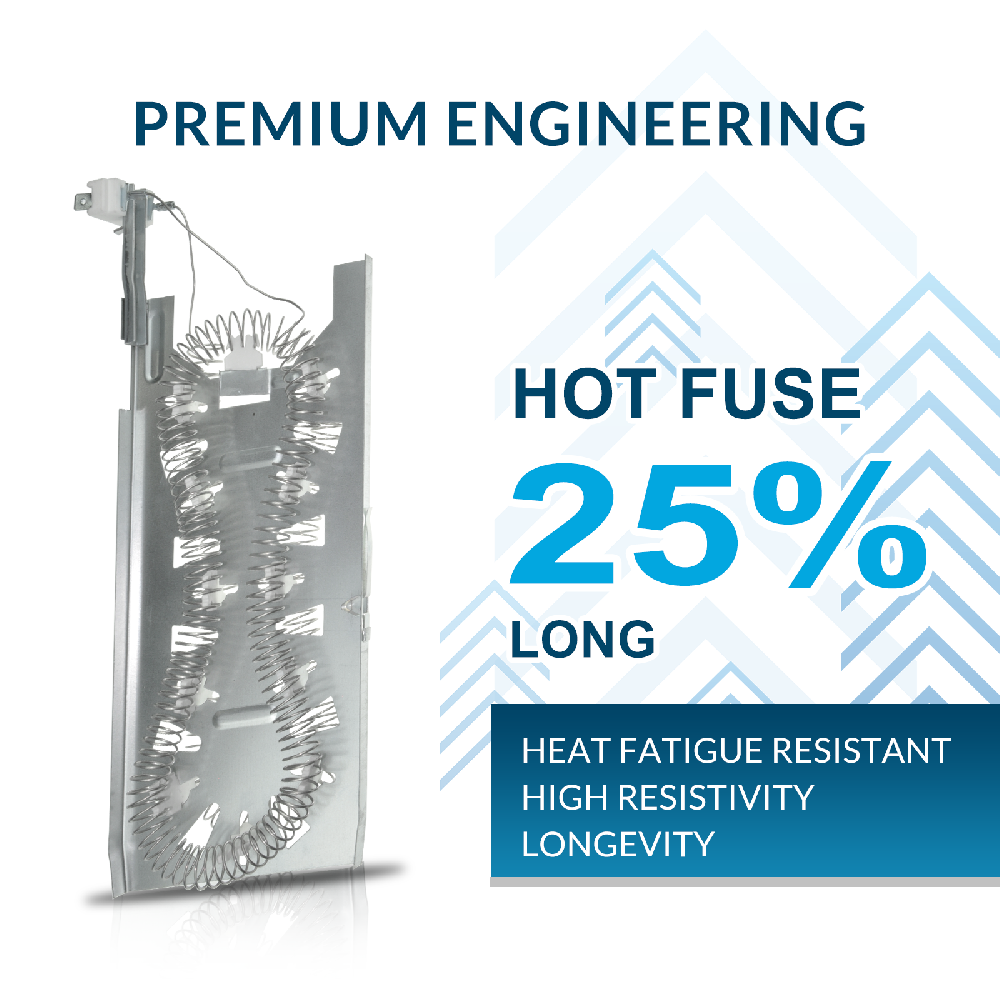

The 3387747 dryer heating element is a 240V 5400W electric heating assembly designed for Whirlpool, Kenmore, Maytag, Roper, Amana, and other major brand electric dryers. When your dryer tumbles but blows cold air — or takes forever to dry a single load — a failed heating element is almost always the cause.
The 3387747 uses a nickel‑chromium resistance coil that generates intense heat when electric current passes through it. This heat is then circulated through the dryer drum to evaporate moisture from clothes. The 3387747 is a later revision of the widely used 279838 platform, offering improved coil durability and heat distribution.
Factory note: As a manufacturer of the 3387747, every unit from our production line undergoes full 240V testing before shipment. We use minimum 85% nickel‑chromium content to ensure even heat distribution and a service life of 3–5 years under normal household use.
Voltage: 240V AC
Wattage: 5400W
Coil material: Nickel‑chromium (≥35%)
Terminal type: 2 x 5/16″ male spade
Dimensions: 10.5″ × 7.5″ × 2″
Interchangeable part numbers: WP3387747, 279838, AP3094254, 3387747VP, PS11746342, 80026, AH334313, EA334313, EAP334313.
Compatibility note: The 3387747 is a direct replacement for the 279838 but is considered an improved design. It fits all dryers that originally used 279838.
The 3387747 fits electric dryers only from these brands:Whirlpool (Cabrio, Duet, Estate, Roper), Kenmore (110 series – 70, 80, 90, 300, 400, 500, 600), Maytag (Bravos, Centennial, Performa), Amana, Admiral, Inglis, KitchenAid, Crosley, Magic Chef
The heater housing is typically located behind the rear panel on the bottom right or center, depending on the model.
Quick compatibility check: Find your dryer‘s model number. Search online: “[your model number] + 3387747” — if results show this part, it fits.
Replacing the 3387747 is a straightforward DIY repair that takes about 30 minutes. Always disconnect power before beginning.
Tools needed: ¼″ nut driver, Phillips screwdriver, needle‑nose pliers, multimeter, vacuum, camera (for wiring documentation).
Installation steps:
1 Unplug dryer. Turn off circuit breaker if hardwired.
2 Pull dryer away from wall. Remove screws securing rear panel.
3 Take a clear photo of wire connections to the element, thermostats, and thermal fuse.
4 Disconnect wires from heating element terminals using needle‑nose pliers.
5 Remove retaining screws. Slide the old element out of the heater housing.
6 Test the old element with a multimeter – no continuity means it‘s failed.
7 Slide the new 3387747 element into the housing. Secure with retaining screws.
8 Reconnect wires according to your reference photo. Ensure all terminals are firm.
9 Replace rear panel. Plug dryer back in. Run a timed dry cycle on high heat.
10 Verify warm air within 2 minutes. Check for unusual noises or odors.
Q: Is the 3387747 the same as the 279838?
A: Yes — the 3387747 is a later revision of the 279838. It fits all the same dryers and is often considered an improved design with better coil durability.
Q: Can I install this myself?
A: Yes. Installation takes about 30 minutes with basic hand tools. Follow the step‑by‑step guide above.
Q: Why does my dryer still have no heat after replacing the 3387747?
A: Test the thermal fuse (3392519) and cycling thermostat (3387134). If either has failed, the dryer won‘t heat even with a new element. Replace all three together.
Q: How long does the 3387747 last?
A: With proper lint maintenance, 3–5 years. Factory data shows 85%+ nickel‑chromium elements outlast lower‑grade alternatives by 12–18 months.
Q: Is the aftermarket 3387747 as good as OEM?
A: Quality varies by manufacturer. Premium aftermarket options use 90% nickel‑chromium content and longer coils. Look for a 1–2 year warranty.
